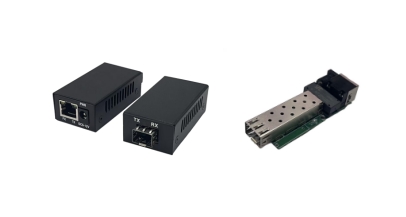

ZX-1G1EM SFP is a 10/100/1000Mbps adaptive gigabit Ethernet Media Converter. It have one

10/100/1000Mbps UTP port and one 1.25Gbps fiber ports. It extends the transmission distance of a

network from 100m via copper cables to 120km.It can extend the transmission distance, and also with

many other advantages such as isolation protection, good data security, working stable and easy to

maintain.

Supports mutual conversion between 10/100/1000Base-T and 1000Base-FX

1 full-duplex optical port with 1.25Gbps, and 2 adaptive electrical ports with10/100/1000M speeds;10/100/1000M rate adaptive, MDI/MDI-X adaptive, full/half duplex adaptive,

Both optical and electrical links have complete connection/activity status indicators,

Supports SFP slots and hot-swapping functionality,Supports IEEE 802.3x flow control and backpressure flow control;

Supports custom 5~12V DC wide voltage input,

Supports transmission of ultra-long data packets up to 9k bytes,It supports low-latency transmission and also features isolation protection,Easy to use, plug-and-play, no settings required,

Compact in size, suitable for installation in various locations,

The device employs low-power chips with minimal heat generation, enabling stableoperation over extended periods

ZX-1G1EMF

(Note: The fiber optic interface defaults to an SFP slot; no SFP module is included by default but can be purchased separately. The standard configuration includes a 5V1A US power adapter, with optional Chinese or European standards available.)
